Plug-in (Component)Free

OSM Maps

by Xebia USA Inc

Description

OSM Maps is a SAIL Component that enables you to integrate Open Street Maps in Appian with a variety of features. It allows you to Visualize your organization data based on geography Directly take any action on that data from the map.

Features

It is tested with more than 10000 markers

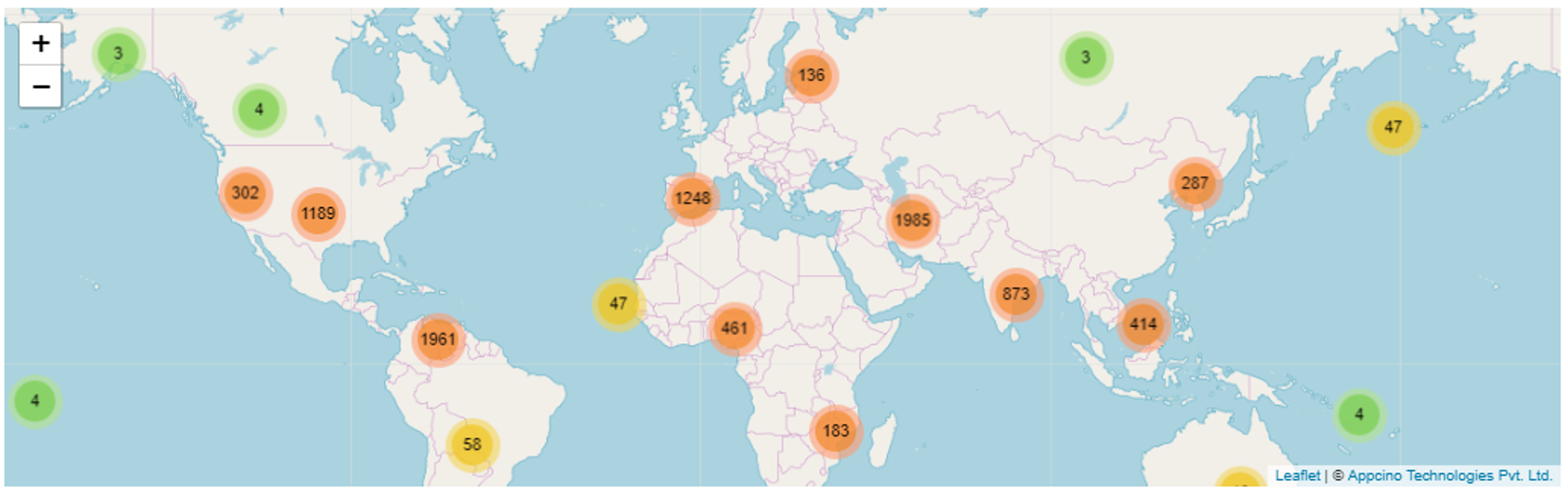

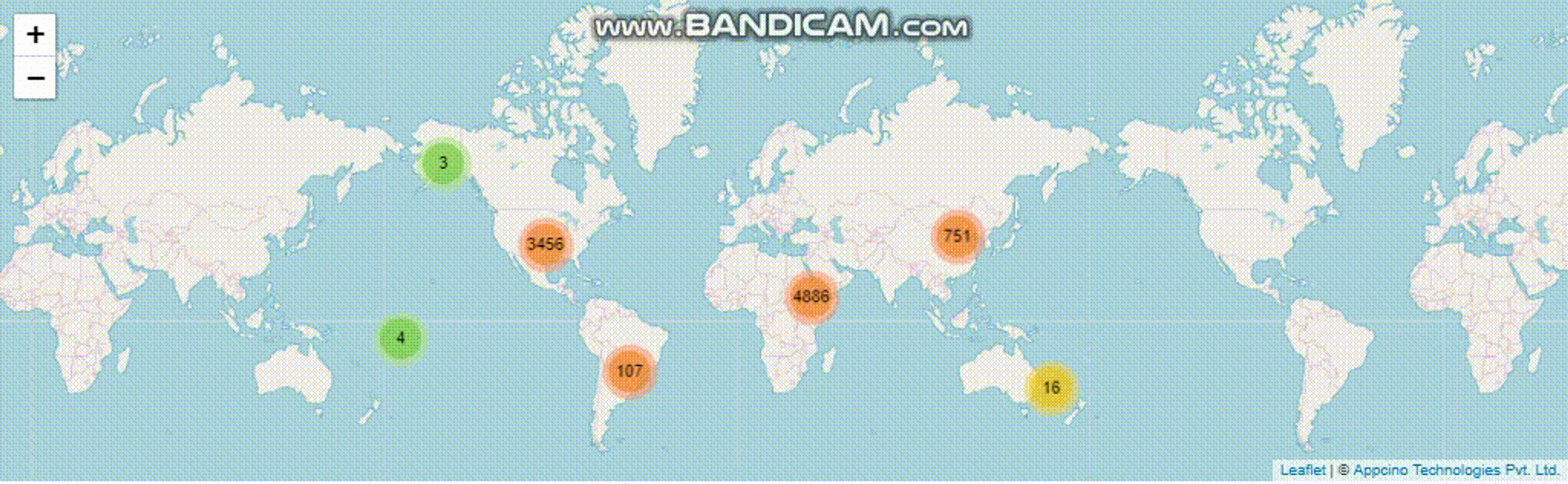

Clustering:

  • Set mode as 'CLUSTER' and group data while showing customizable aggregated information on markers with no overrides. Run time drill down on clusters. Clusters also act as Heat Maps by showing density using colors.

*Example: Cluster data on region basis to calculate leads count or total intensity by region.

Custom Markers

  • Define your own graphical custom markers based on the data.
  • Example: Customize markers with image, or colors to identify between leads, contacts, accounts, etc.

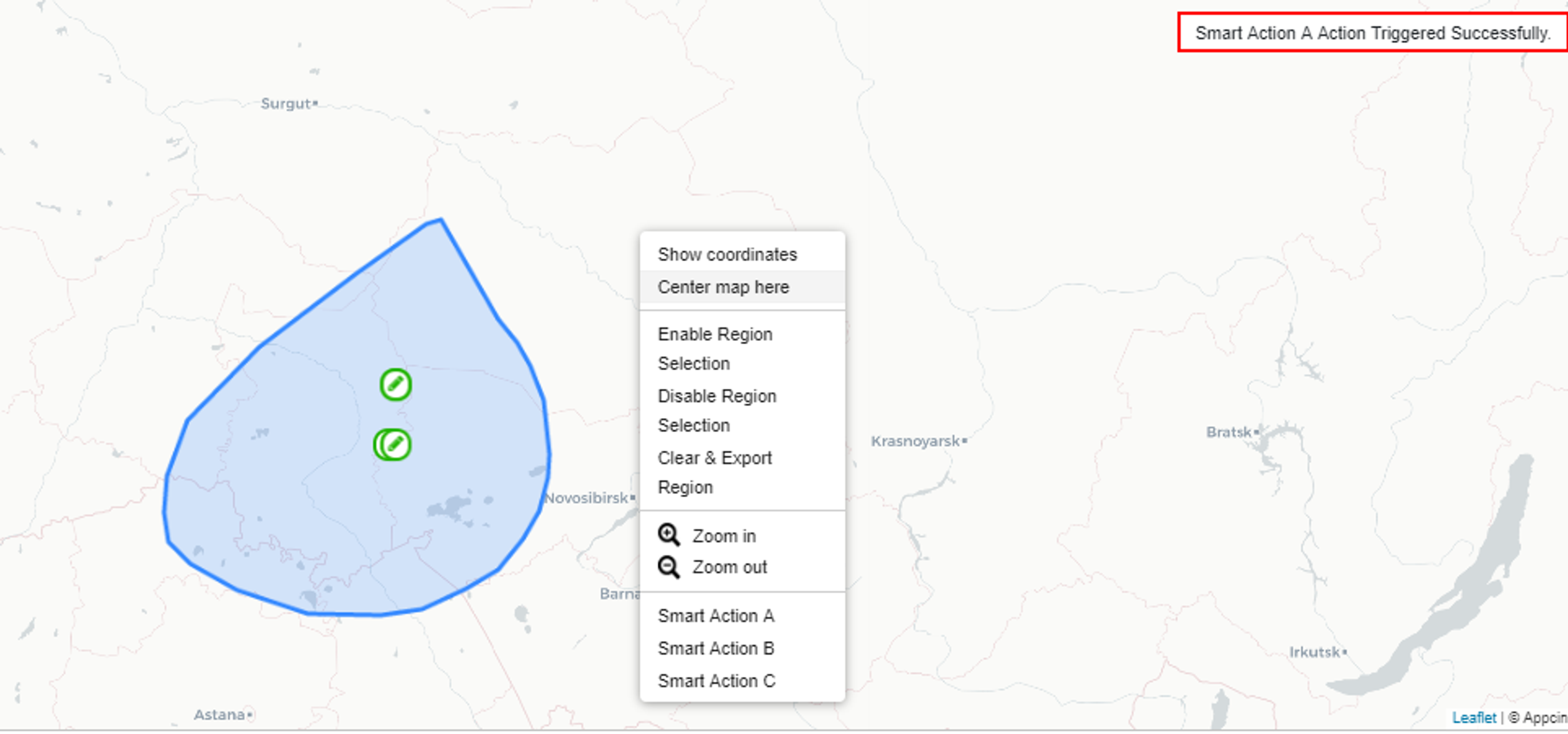

Smart Actions

  • Take any Appian action on selected markers directly from the map. Selected Smart Actions are returned to Appian to take any action needed.

*Example: Assign a task to relationship managers of all leads within a region.

Dynamically Select & Export Selected Markers

  • Allowing Selection of region by selecting any polygon on maps and export the markers lying in that polygon.
  • Example: Export data of all leads of a particular region.

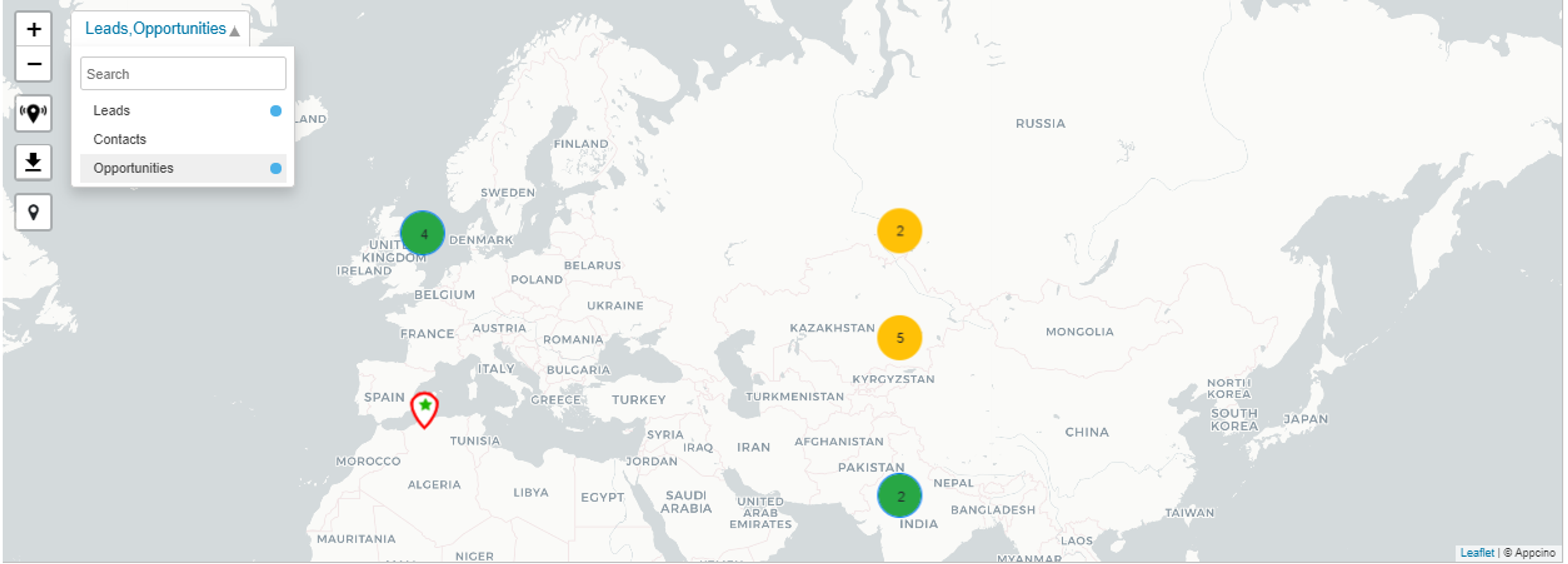

Filter Data Points/ Markers

  • Accept a Dictionary structure of all markers and automatically allows you to filter the map based on sent categories.
  • Example: Filter Leads on the Map by Status (Hot, Cold, Warm).

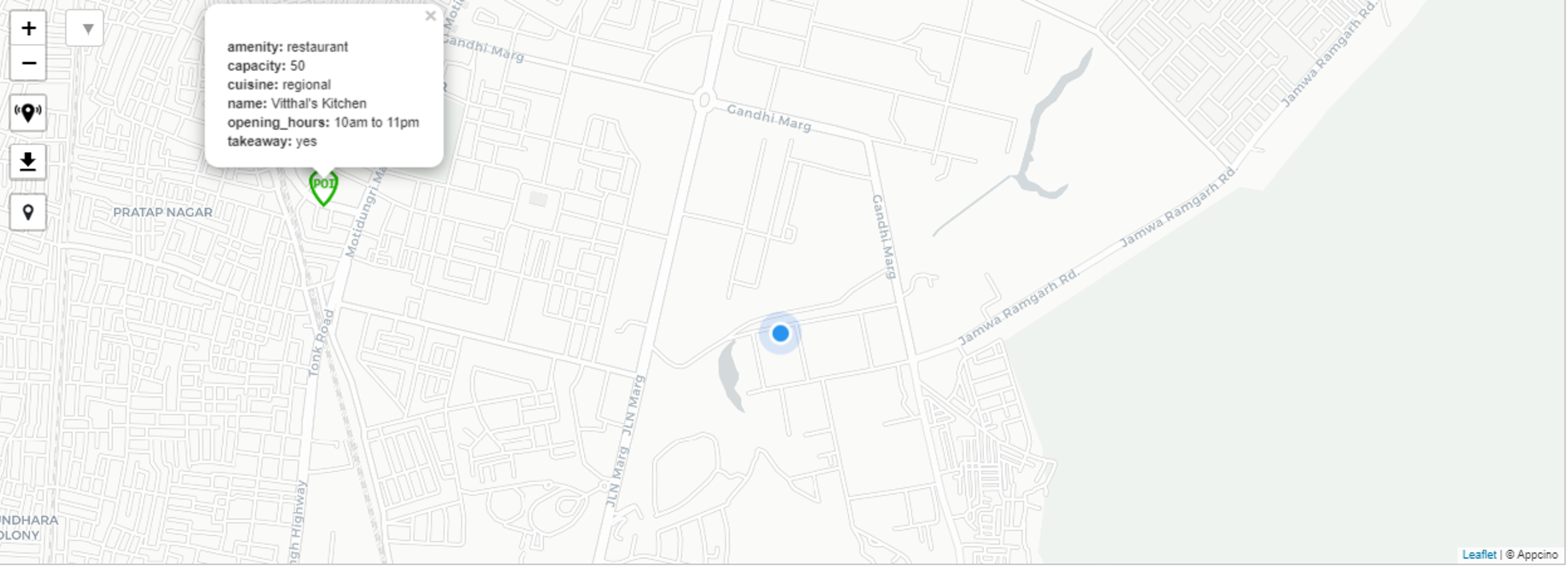

Points Of Interest (POI)

  • Based on the current location, get all the POIs nearby and take any Appian action on them
  • Example: Get all the restaurants near your current location.

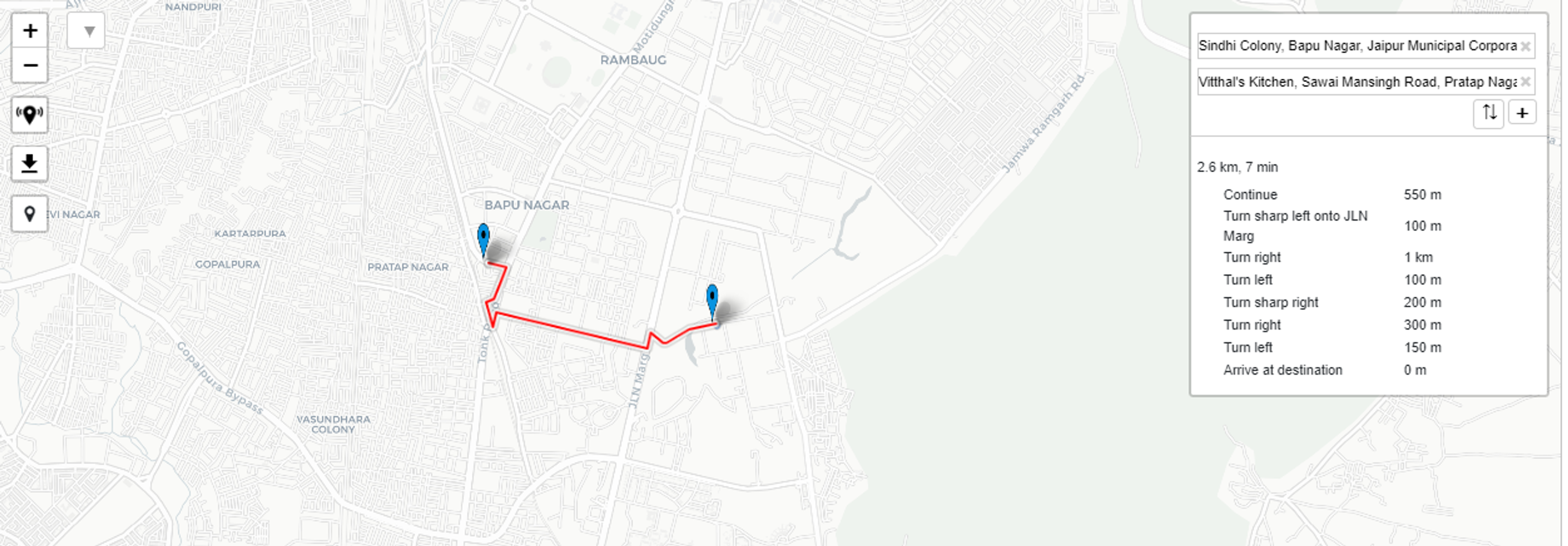

Routing

  • Get the shortest route to any marker from your current location along with detailed directions. Allows you to calculate travel timings to your customer locations right from Appian itself.

Download

  • Download the map snippet in PNG format as portrait or landscape and print it easily.
  • Example: Share and analyze the data among peers.

Share Location

  • Share a location with custom messages

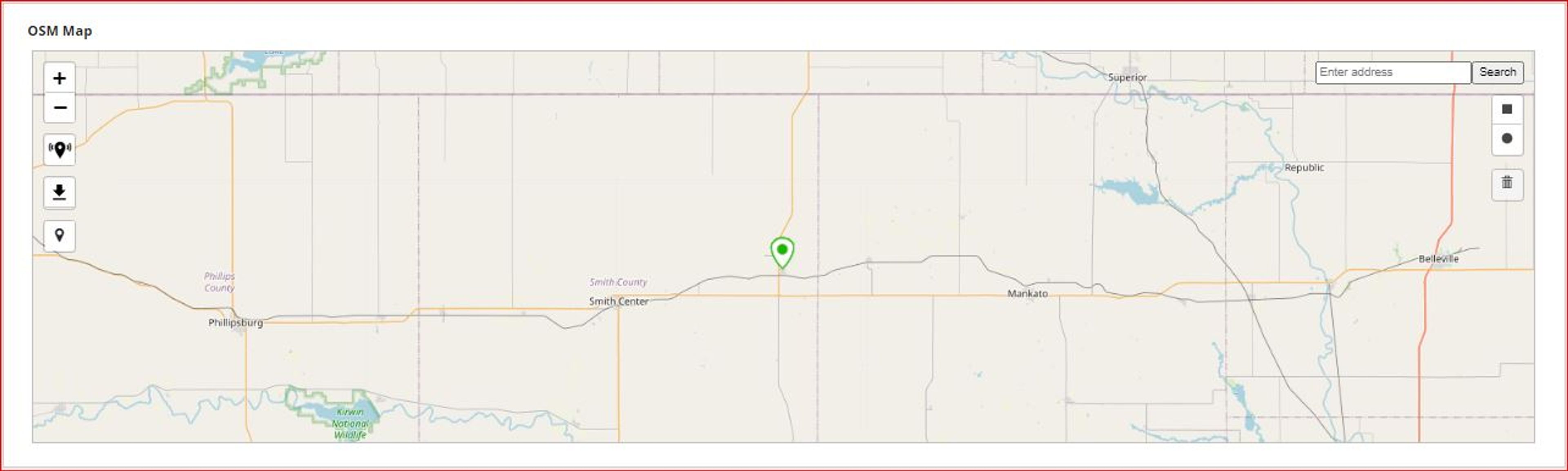

Search

  • Search address directly in OSM Maps.

US Zips Export

  • Draw any region over the US and get all Zip Codes that lies within it.

Get Address

  • Click anywhere (land) and get its geo details.

Release notes

Security patch updated

Version history (5)

1.3.1

-If maxmarkerCount is present, the user cannot select markers more than the specified count.

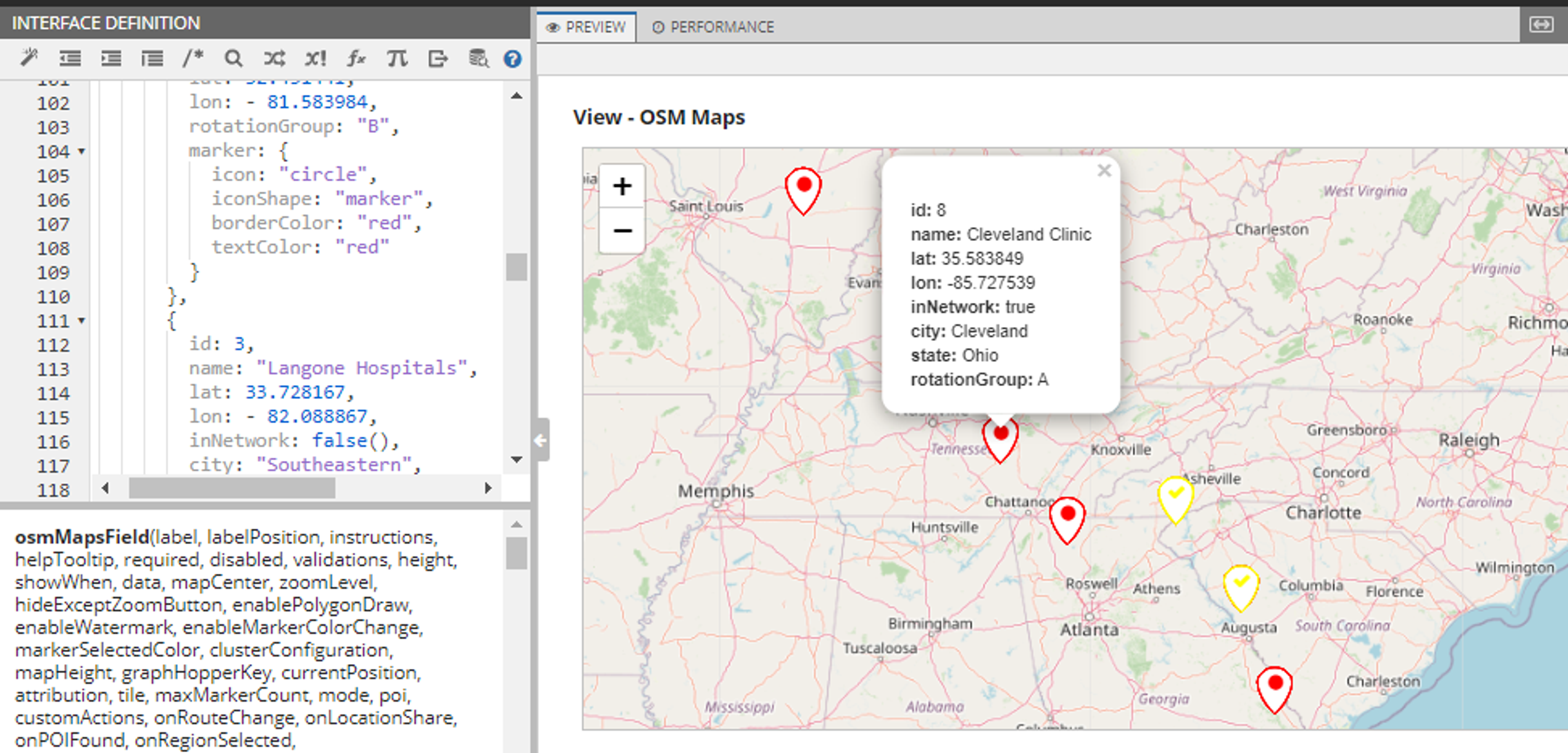

-Parameter showLatLangInPopup added. If this is set to false, the popup on marker hover will not show the latitude longitude details. If the value is not provided default value will be taken as true.

  • Parameter enableMapInteraction added. If this is set to false the Map will not allow the user to interact with the markers in the component(select/deselect them). If the value is not provided default value will be taken as false.

1.3.0

  1. Added additional feature to Change default Color of the marker with parameter borderColor and textColor inside marker

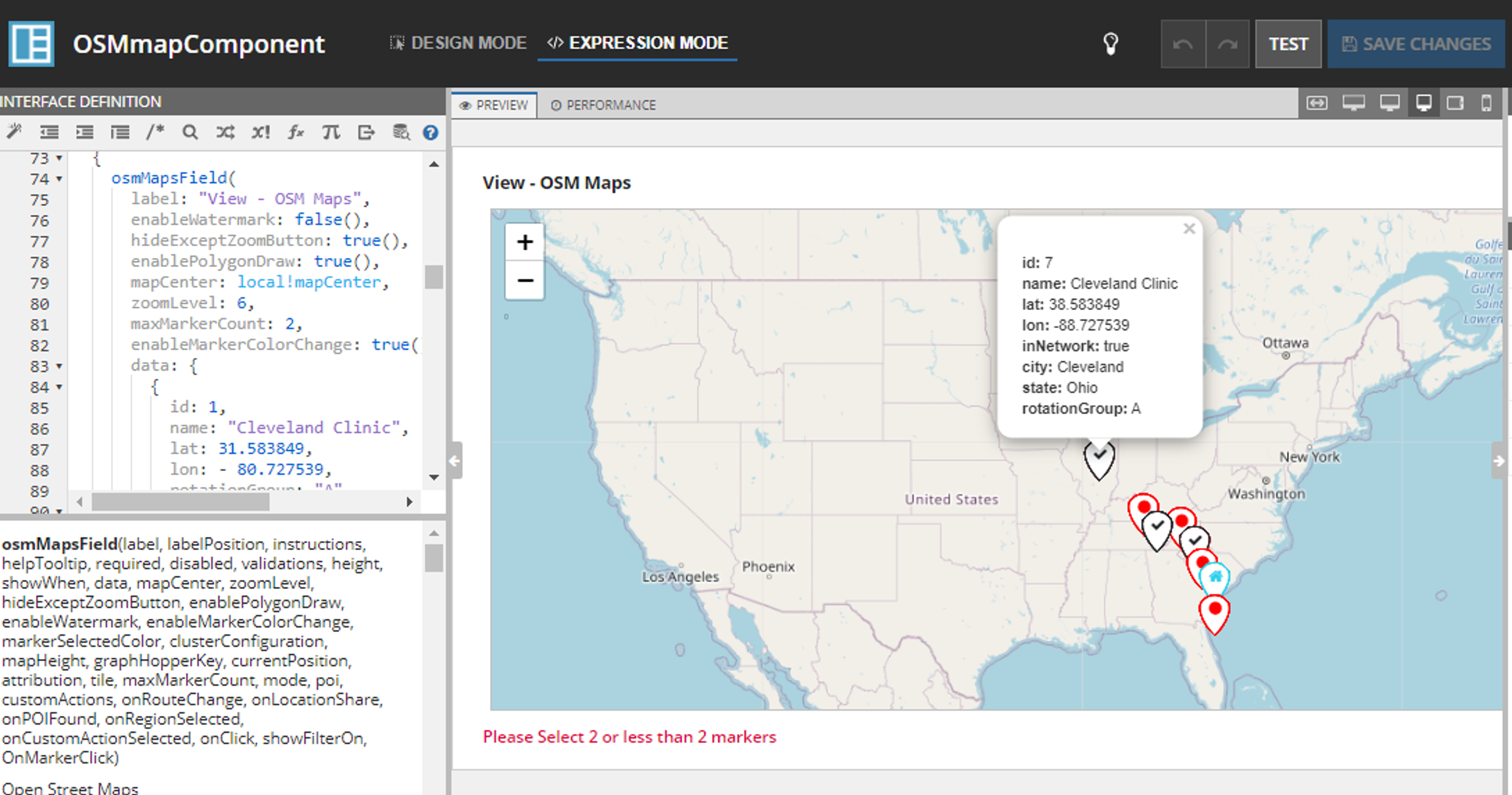

  2. Hover Over the marker to view the data associated with the marker.

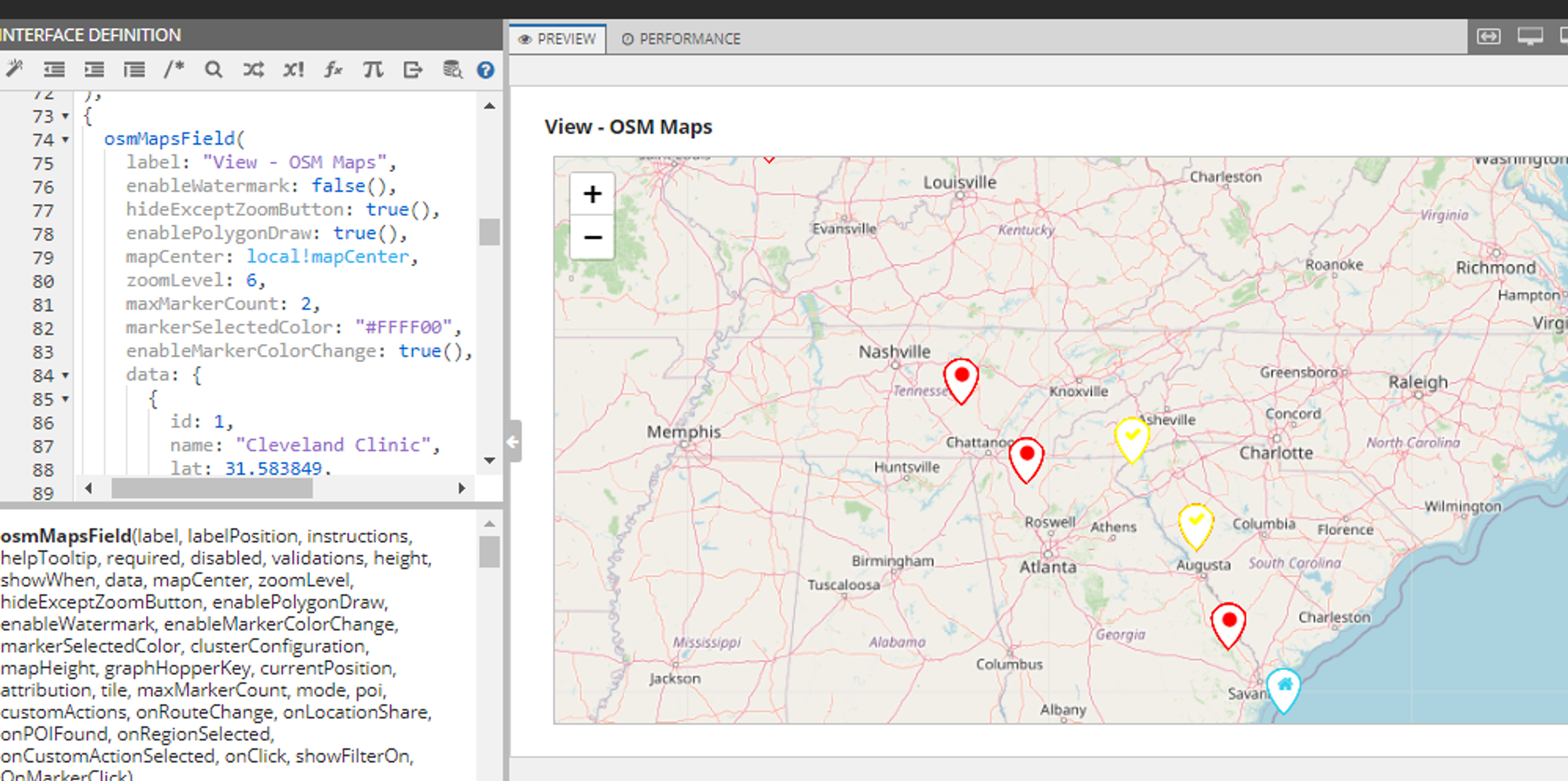

  3. Using the parameter enableMarkerColorChange and ‘markerSelectedColor’ the user can represent the color change on click of a available marker to the color mentioned in marker selected color

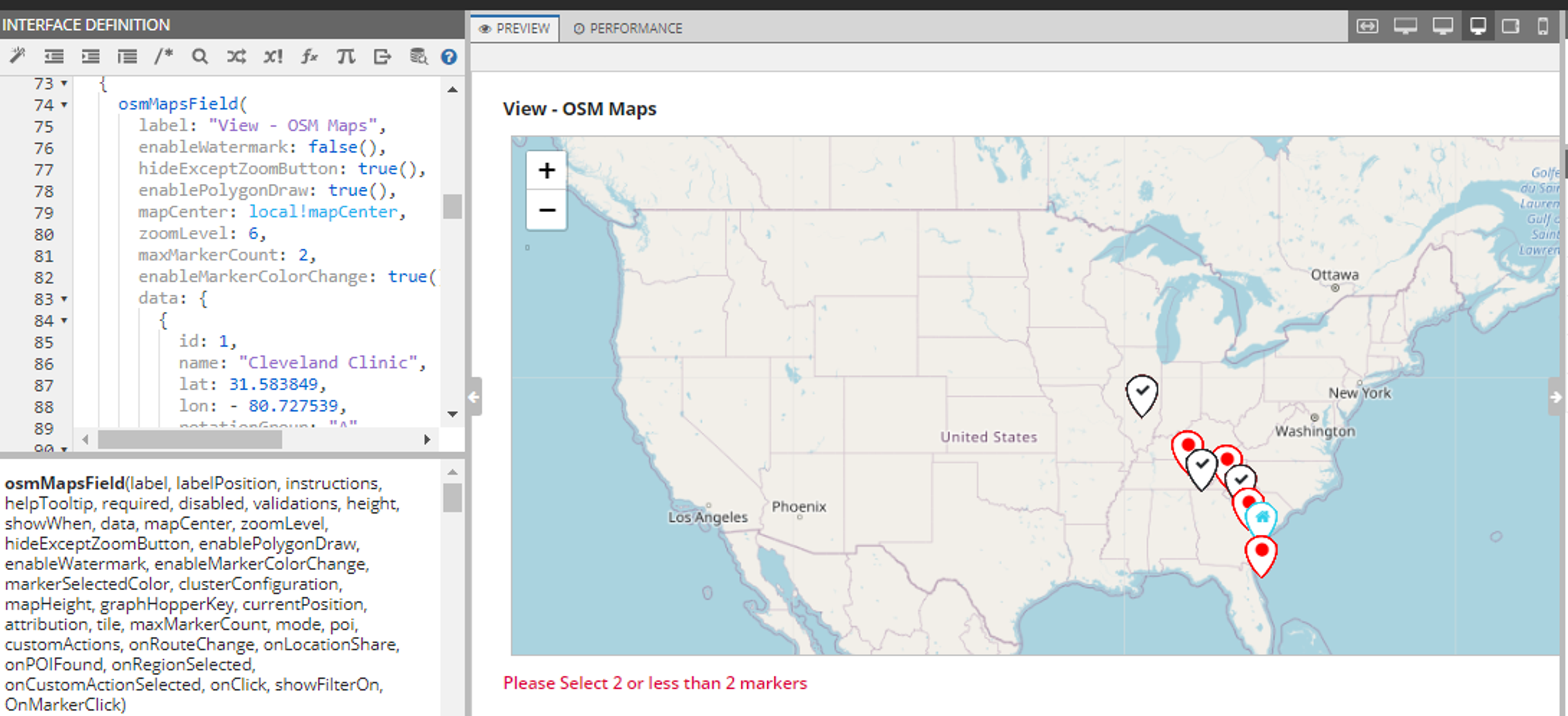

  4. Parameter maxMarkerCount introduced.This provides a limit on the number of markers to be selected using ‘OnMarkerClick’.If Marker Selected list is greater than maxMarkerCount a validation message will be displayed on the component
  5. Width of Map Increased for US Region

1.2.0

  1. Added additional feature to zoom in and out of the map using the parameter zoomlevel which accepts values from 0 to 18.
    0 - World; 5 - Landmass/continent; 10 - City; 15 - Streets; 18 - Buildings

  2. Using the parameter mapCenter the user can represent the centre of the map by providing the latitude and longitude values.

  3. The other buttons except the zoom available on the map to share location and print can be hidden based on the user’s choice with the hideExceptZoomButton.

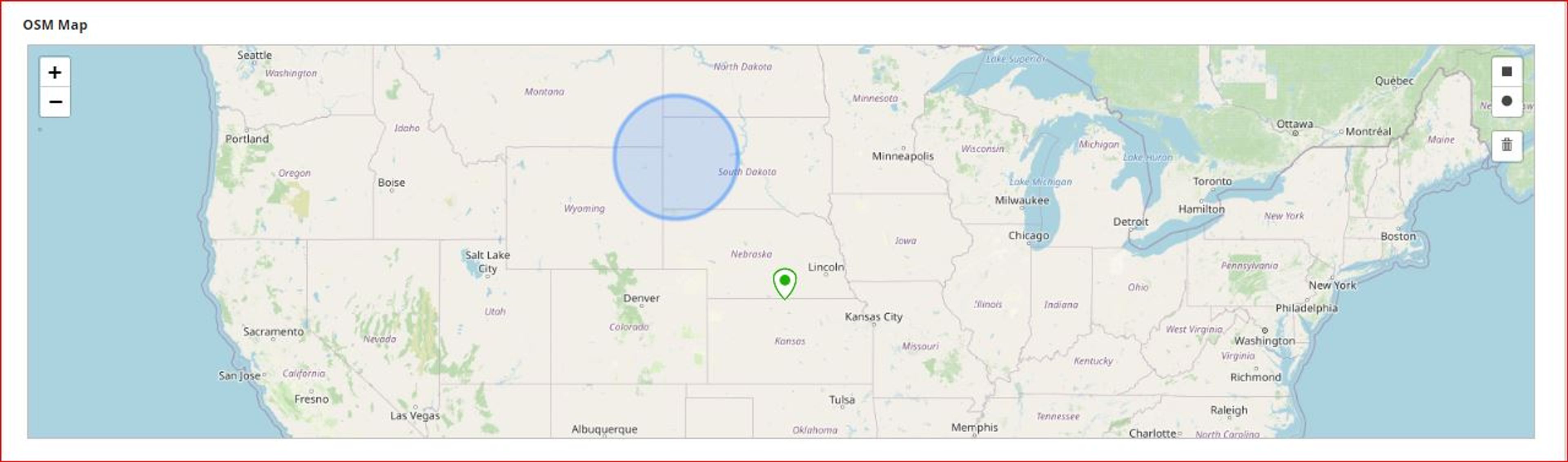

  4. ‘enablePolygonDraw` when set to true allows the user to draw a rectangle or circle from the map after selecting a region and returns the list of regions.

  5. The watermark can be shown or hidden by setting enableWatermark to true or false.

1.0.2

No Technical updates.

1.0.2

Added 3 new functionalities:

  • Search: Added a search box through which an address can be searched over the map.
  • On Click: Click anywhere (land) and get its geolocation data.
  • Added a new tile layer "ZIP:US", In which, a user can draw a polygon over US region and the map will return all zip codes which lies under that polygon.

Resources

  • OSM Maps (Vresion 1.3.1) Release notes .pdf
